Products/DVR Recorders/Hikvision iDS-7116HQHI-M1/T 16-ch 1080P Mini 1U H.265 AcuSense DVR
Hikvision iDS-7116HQHI-M1/T 16-ch 1080P Mini 1U H.265 AcuSense DVR−20% OFF

DVR Recorders • SKU: iDS-7116HQHI-M1/T

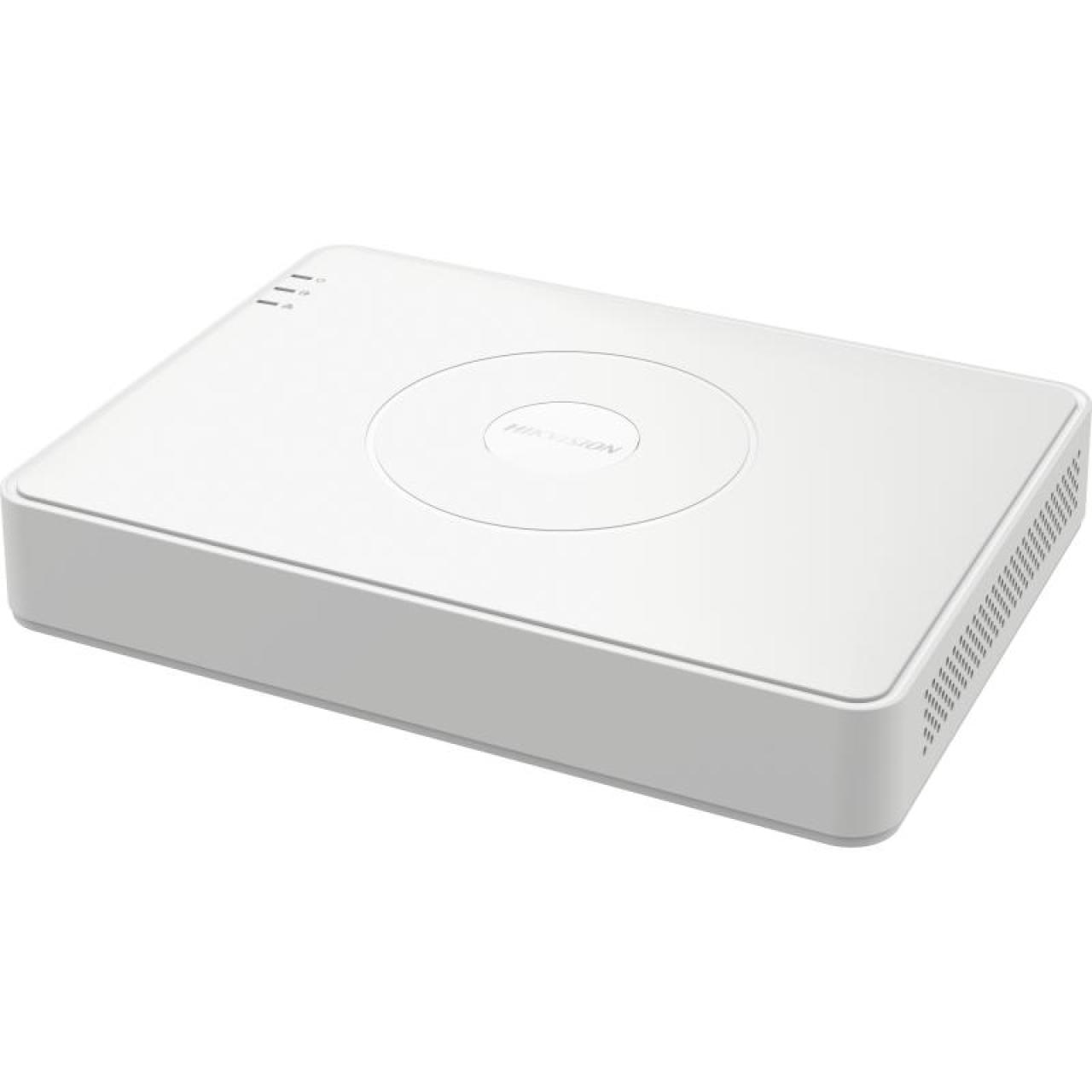

Hikvision iDS-7116HQHI-M1/T 16-ch 1080P Mini 1U H.265 AcuSense DVR

Rs. 51,530Rs. 64,781

The Hikvision iDS-7116HQHI-M1/T is a 16-channel AcuSense DVR for Turbo HD analogue cameras, recording up to 1080P. AcuSense tells people and vehicles apart from other movement, so you get fewer false alerts from animals, rain or swaying trees. It has 1 hard drive bay; the hard drive is sold separately and sized to how many days of footage you want to keep. Watch live and recorded video on your phone with the Hik-Connect app. Enspire supplies it with warranty and can install and set it up anywhere in Sri Lanka.

1

2 Year Warranty

Island-wide Delivery

Key Features

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • Deep learning-based perimeter protection
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 24-ch IP camera inputs (up to 6 MP)
  • Encoding ability up to 3K/5M Lite @ 12 fps

Technical Specifications

SATA1 SATA interface
Weight≤ 1 kg (2.2 lb)
CapacityUp to 10 TB capacity for each disk
AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS InputPAL/NTSC
Frame RateMain stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP…
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Audio Input1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
Consumption≤ 24W (without HDD)
Dual-streamSupport
HDCVI Input3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 2K(2304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
Stream TypeVideo, Video & Audio
Alarm In/OutN/A (optional to support)
Audio Output1-ch, RCA (Linear, 1 KΩ)
ManufacturerHikvision
Power Supply12 VDC, 2 A
Audio Bitrate64 Kbps
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
USB InterfaceReal panel: 2 × USB 2.0
Video Bitrate32 Kbps to 6 Mbps
IP Video Input2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Total Bandwidth128 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF,ISUP
Working Humidity10% to 90%
Audio CompressionG.711u
Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Remote Connection128
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Encoding ResolutionWhen 1080p Lite mode is not enabled: 2K/3K lite/5 MP lite/4 MP lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 2K/3K lite/5 MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Synchronous playback16-ch
Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by…
Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
Facial Detection and CaptureFace picture detection, face picture search
Line Crossing Detection/Intrusion Detection4-ch
