Hikvision DS-PM1-O1L-WB Wall Switch−17% OFF

Alarm Systems • SKU: DS-PM1-O1L-WB

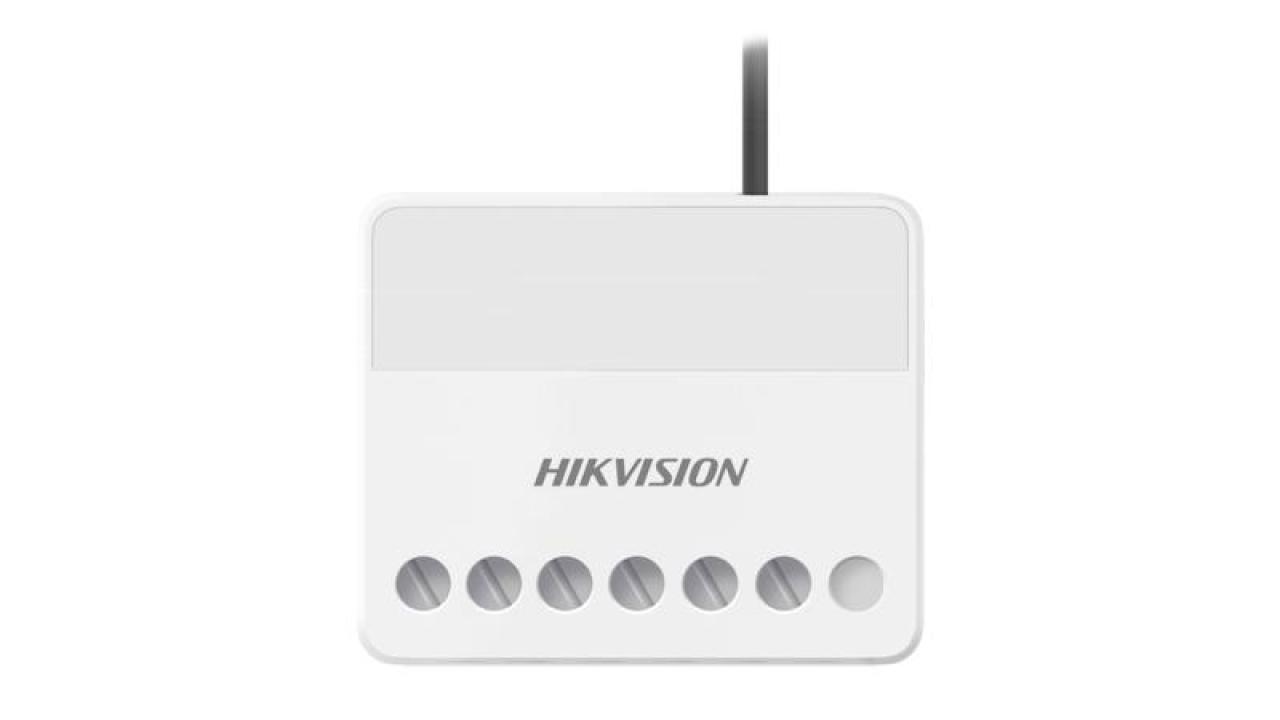

Hikvision DS-PM1-O1L-WB Wall Switch

Rs. 8,963Rs. 10,798

The Hikvision DS-PM1-O1L-WB is a wireless relay module to switch lights or other devices from the alarm or your phone. It works with the Hikvision AX PRO wireless alarm system and is set up and monitored in the Hik-Connect app. Enspire supplies it with warranty and can install the complete alarm system anywhere in Sri Lanka.

1

2 Year Warranty

Island-wide Delivery

Key Features

  • 433 MHz two-way wireless communication
  • AES-128 encryption
  • LED display, show status of device and replay on/off display
  • Small case design, which can be put into hiding places easily
  • Automation operating, one button turn on/off from APP/Keyfob/Keypad
  • Setting scenarios by different events
  • An alarm input for tamper, NO, NC

Technical Specifications

ColorWhite
SystemHikvision AX PRO wireless alarm
Weight28.5 g
RF methodTwo-way communication
Data SheetDownload PDF
Alarm input1 for tamper, NO/NC
LEDs status3, register/signal (green/red), power (green), relay status (blue)
RF distance800 m
Serial port1, for debug
ManufacturerHikvision
Power supplyDC 7V to 24V
RF frequency433 MHz
Relay output1, NO/NC (0 to 36V DC, Max 5A)
RF modulation2GFSK
Shell materialPlastic
Learning button1, for register
Dimension(WxHxD)38 mm × 25 mm × 18 mm
Scenario settingBy alarm, by operation, by fault, by schedule, by manual
Wireless securitySupported
Operation humidity10% to 90%
Installation methodWall-Mounting
Operation temperature-10°C to 55°C
