Alarm Systems • SKU: DS-PDMCX-E-WB

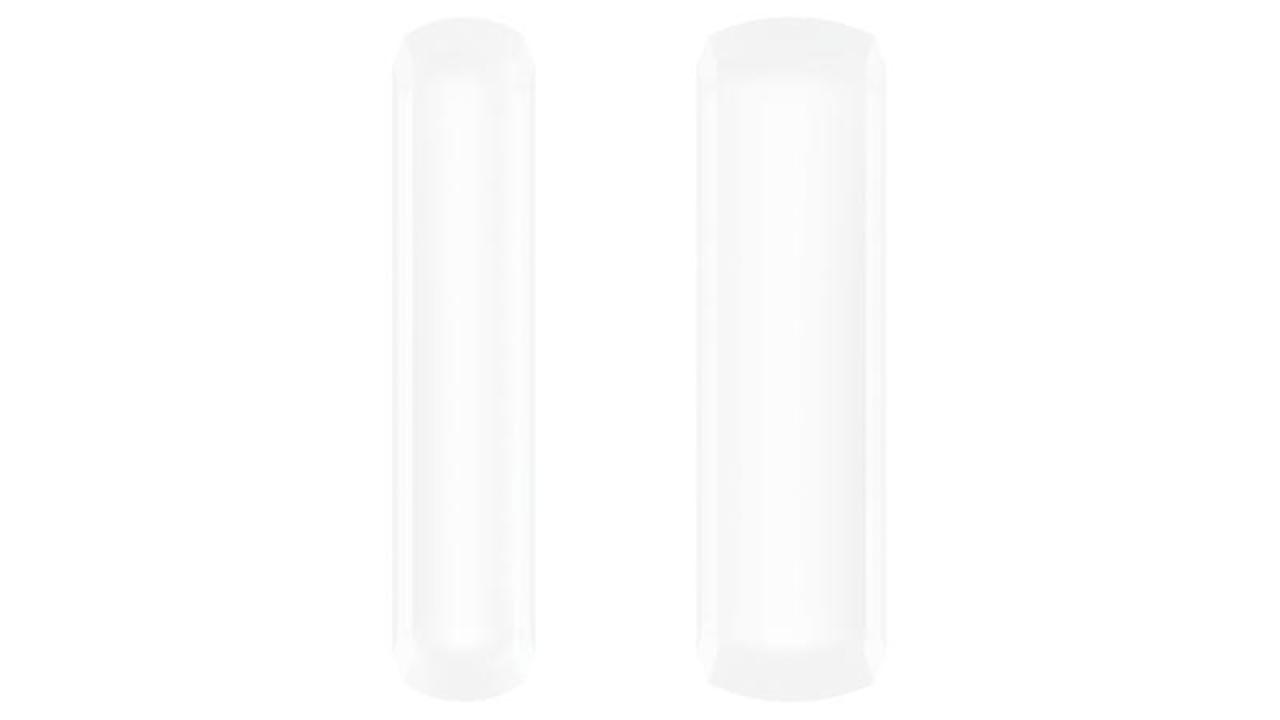

Hikvision DS-PDMCX-E-WB Wireless External Magnetic Contact

Name: Hikvision DS-PDMCX-E-WB Wireless External Magnetic Contact
Brand: Hikvision
SKU: DS-PDMCX-E-WB
Price: 11889 LKR
Availability: InStock

Rs. 11,889Rs. 14,324

The Hikvision DS-PDMCX-E-WB is a wireless door and window contact that triggers when a door or window opens. It works with the Hikvision AX PRO wireless alarm system and is set up and monitored in the Hik-Connect app. Wireless range is up to 1km in open space. Battery life is up to 5 years (standby time). Enspire supplies it with warranty and can install the complete alarm system anywhere in Sri Lanka.

2 Year Warranty

Island-wide Delivery

Key Features

IP66 protective level, UV stable
Fully remote configurable through App
Multiple enrollment methods and easy installation design
Frequency hopping against jamming for reliable transmission

Technical Specifications

SystemHikvision AX PRO wireless alarm

Weight247g

Data SheetDownload PDF

Alarm InputNormally Closed;Normally Open;Impulse Count

Battery TypeCR123A x 1

ManufacturerHikvision

Power SupplyBattery Powered

Power SwitchPower Up Enrolling

Detection Gap76mm Max

LED IndicatorBlue (Alarm)

Typical Voltage3V

Detection MethodOpening Contact

Dimension(WxHxD)Sensor: 40.5mm × 146mm × 40.9mm Magnetic Stick: 30.5mm × 146mm × 40.9mm

Enrolling MethodPower up;Remote ID;QR Code

Frequency HoppingSupport

Tamper ProtectionFront;Rear

Digital ProcessingSupport

Operation Humidity10% to 90%

Storage Temperature-30 °C to 60 °C (-22 °F to 149 °F)

Transmission MethodTwo-Way RF Wireless

Application ScenarioOutdoor, IP66

Operation Temperature-20 °C to 60 °C (-4 °F to 140 °F)

Standard Battery LifeUp to 5 years (standby time)

Transmission SecurityAES-128 Encryption

Transmission Frequency433MHz

Transmission TechnologyTri-X Wireless

Signal Strength IndicatorSupport

Transmission Range(Free Space)1Km

Environment Temperature IndicatorSupport

Buying from Enspire

Island-wide delivery

We deliver to any address in Sri Lanka. Any delivery charge is shown at checkout, and we confirm the expected delivery time when we process your order.

Warranty support

Your purchase is covered against manufacturing defects for the warranty period shown above. Contact us with your order number and we will repair or replace the item.

Professional installation

For cameras, recorders, and access control, our technicians can install and configure the complete system at your home or business, including viewing on your phone.

Secure payment

Pay by Visa, Mastercard, or mCash through PayHere, or by bank deposit. Your card details are handled by PayHere and never stored on our website.

Easy returns

If an item arrives faulty or is not what you ordered, tell us within 7 days of delivery and we will put it right at no cost to you.

Help choosing

Not sure this is the right product? Call or WhatsApp us on 077 20 89 555 and our team will help you choose.

Full details are in our Terms of Service. Questions? Contact our team.

Hikvision DS-PDMCX-E-WB Wireless External Magnetic Contact

Key Features

Technical Specifications

Buying from Enspire

Island-wide delivery

Warranty support

Professional installation

Secure payment

Easy returns

Help choosing

Related Products

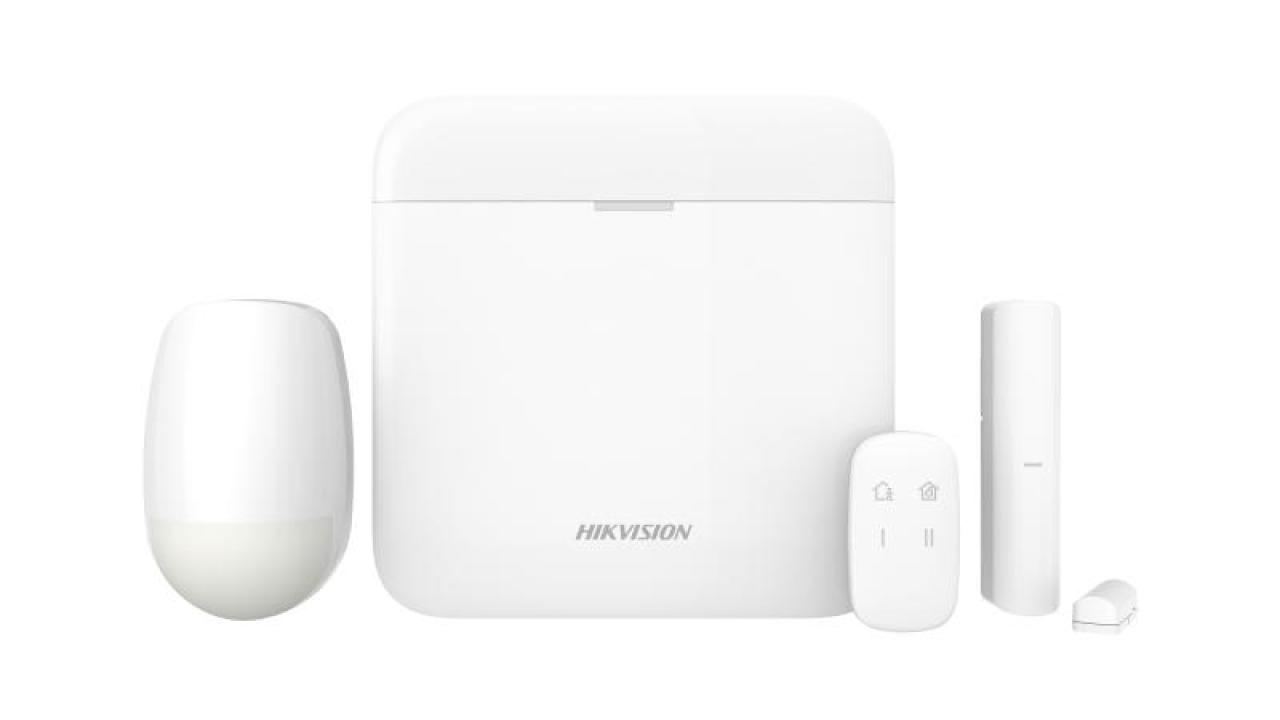

Hikvision DS-PWA64-Kit-WB AX PRO Kit

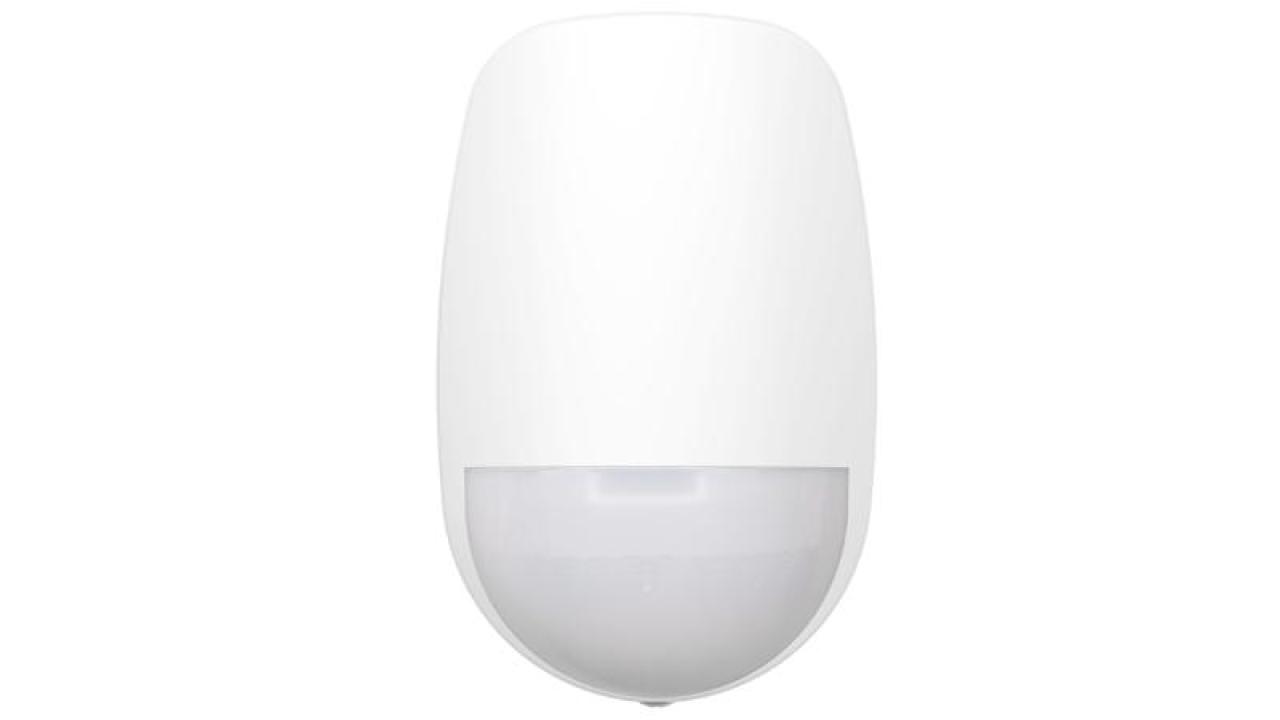

Hikvision DS-PDD12P-EG2-WB Wireless Dual-Tech Detector

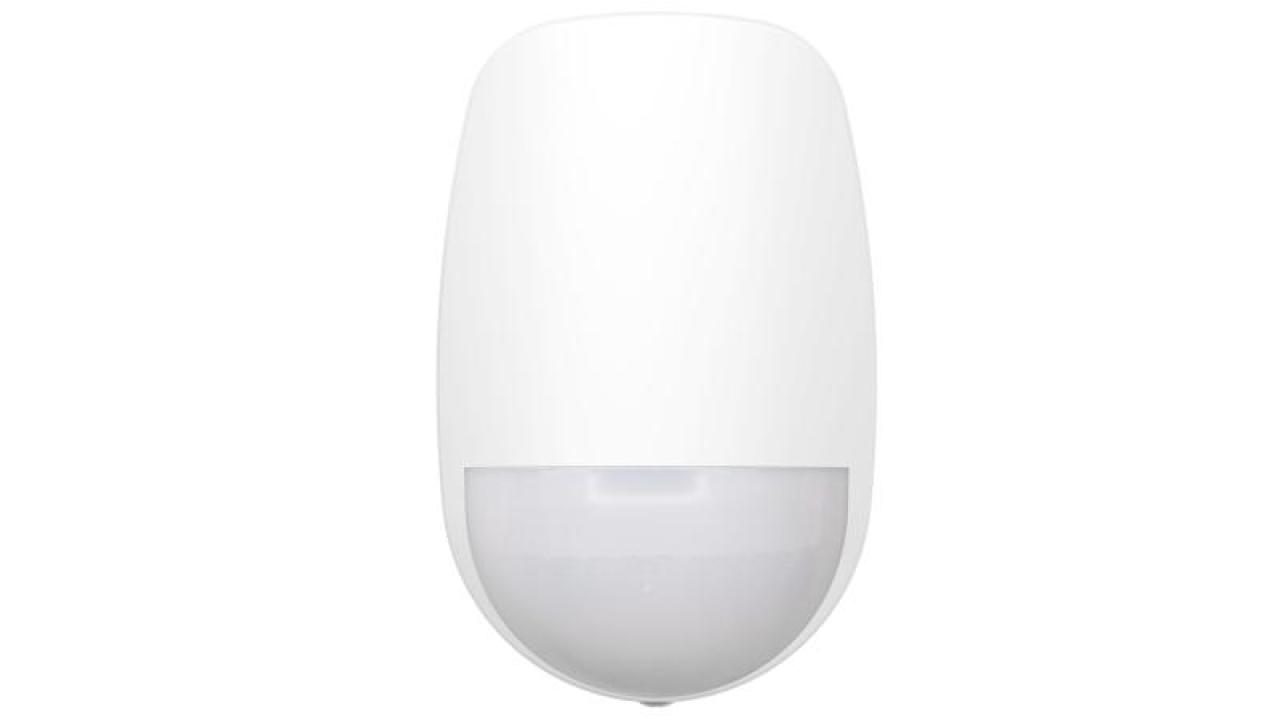

Hikvision DS-PDP15P-EG2-WB Wireless PIR Detector
