Products/Video Intercoms & Door Phones/Hikvision DS-KM9503 10 inch Touch Android IP Main Station

−22% OFF

Video Intercoms & Door Phones • SKU: DS-KM9503

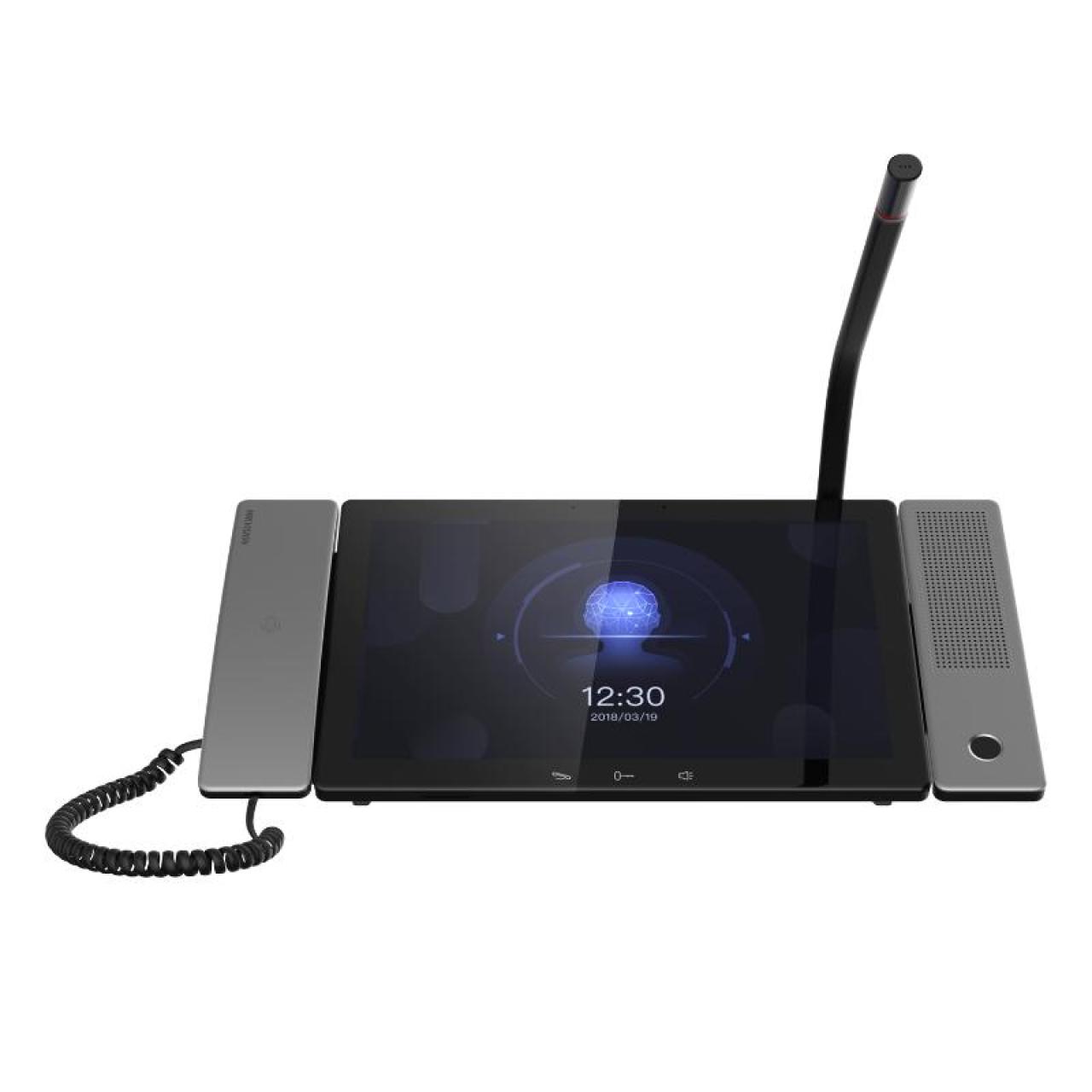

Hikvision DS-KM9503 10 inch Touch Android IP Main Station

Name: Hikvision DS-KM9503 10 inch Touch Android IP Main Station
Brand: Hikvision
SKU: DS-KM9503
Price: 221285 LKR
Availability: InStock

Rs. 221,285Rs. 284,068

The Hikvision DS-KM9503 is a master station for a guard room or reception, used to call and answer every door and indoor station on the system. It is an IP intercom that connects over your network, and calls can also be answered on your phone with the Hik-Connect app. Enspire supplies it with warranty and can install the complete door phone system for homes, apartments and offices anywhere in Sri Lanka.

2 Year Warranty

Island-wide Delivery

Key Features

10.1-inch IPS touch screen with 1280 × 800 resolution
Built-in SIP private server, up to 10,000 video intercom devices accessesUp to 128 network cameras can be added to the device
Supports more than 2 speakers and microphones: Connects to external earphone (3.5 mm), external goose neck microphone
Displays operation pages via HDMI
Supports standard PoE & 12 VDC power supply
Video intercom and access control functions: Call waiting, call priority configuration, call across buildings, call forwarding (call forward when no answer, call forward when busy, call forwarding schedule, one-touch call forwarding), IPC fowarding，Multi-party intercom

Technical Specifications

FOVHorizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°

RAM2 GB

ROM8 GB

USB3

Lens/

TypeColorful IPS

3G/4G/

Wi-Fi/

Button3 touch buttons

RS-4851 (reserved)

TAMPER/

WeightNet weight: 1.285 kg (2.8 lb) Gross weight: 2.305 kg (5.0 lb)

Zigbee/

Battery/

TF cardSupport TF card, up to 128 G

LanguageEnglish, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek…

Indicator3

ProcessorEmbeded high performance processor

Data SheetDownload PDF

Resolution1280 × 800

Alarm input2 (reserved)

Audio inputBuilt-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)

Screen size10.1-inch

Audio outputBuilt-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)

InstallationTable mounting & wall mounting

Lock control2 relays (reserved)

ManufacturerHikvision

Power supply12 VDC, standard PoE (LAN1)

Audio qualityNoise suppression and echo cancellation

Network protocolTCP/IP, SIP, RTSP

Operation methodCapacitive touch screen

Operation systemAndroid 7.1

Protective level/

Supplement light/

Working humidity10% to 90% (no-condensing)

Network interface2

Power consumption≤ 12 W

Volume adjustmentAdjustable

Application environmentIndoor

Dimension (W × H × D)292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2")

Wide dynamic range (WDR)/

Audio compression bitrate64 Kbps

Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1

Video compression standardMain stream: H.264; Sub-stream: H.264

Resolution (Video parameters)2 MP

Linked network camera capacity128

Linked intercom device capacity10,000
