Hikvision DS-3WF03C-5AC/O 5Ghz 867Mbps 15km Outdoor Wireless CPE−22% OFF

Network Switches & Wi-Fi • SKU: DS-3WF03C-5AC/O

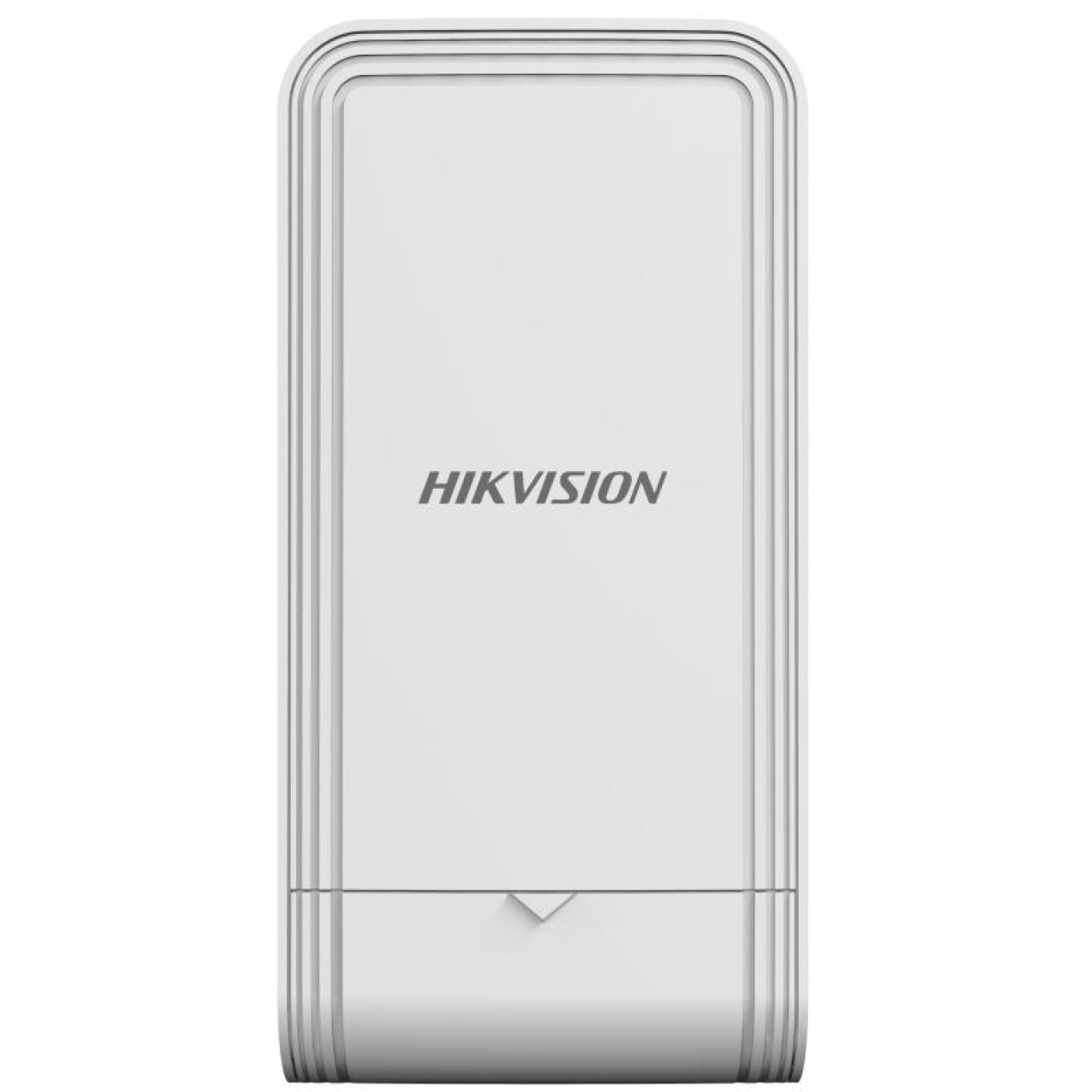

Hikvision DS-3WF03C-5AC/O 5Ghz 867Mbps 15km Outdoor Wireless CPE

Rs. 35,318Rs. 45,338

The Hikvision DS-3WF03C-5AC/O is a wireless bridge that links a camera or network across a gap where cable is not practical. Enspire supplies it with warranty and can design and install the complete CCTV network anywhere in Sri Lanka.

1

2 Year Warranty

Island-wide Delivery

Key Features

  • Up to 15 km wireless transmission distance
  • All gigabit LAN ports
  • TDMA supported
  • Quick match through DIP switch
  • Visualized topology management

Technical Specifications

EMCCE-EMC(EN 55032, EN 50130-4, EN 55035, EN IEC 61000-3-2, EN 61000-3-3), IC(ICES-003, Issue 7)
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the connection status between AP and…
RadioEN 301 893,EN 300 440,EN 301 489-3,EN 301 489-17,EN 301 489-1, EN IEC 62311
ResetHardware resetting button
SafetyCB (IEC 62368-1),CE-LVD (EN 62368-1)
UpgradeWeb,iVMS-4200,HCP,HPP
ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Net Weight0.307 kg (0.677 lb)
System LogSyslog,Control center information
Antenna Gain12 dBi
Gross Weight0.807 kg (1.779 lb)
ManufacturerHikvision
Packing ListWireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,10/100/1000 Mbps PoE Injector × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
Power Supply12-24 VDC/1 A Passive PoE
Antenna Angle(H) Beamwidth [3 dB] 35°, (V) Beamwidth [3 dB] 35°
Channel Width20/40/80 MHz
LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
Security ModeWPA2-PSK
Packing MethodSingle unit packing
Throughput RatePTP: 230 Mbps/1 KM(AC80),200 Mbps/5 KM(AC80),20 Mbps/15 KM(AC80),PTMP(1 to 8): 80 Mbps/5 KM(AC80)
Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
Storage Humidity5% to 95% (no condensation)
Working Humidity5% to 95% (no condensation)
Channel SelectionAuto/manual selection
Installation ModePole Mounting
Management MethodHCP,Web,iVMS-4200,HPP
Network Interface2 × 1000 Mbps RJ45 ports
Power Consumption3 W for typical (1-ch 2MP IPC), Max. 7.5 W
Wireless StandardIEEE 802.11/a/n/ac
Ingress ProtectionIP55
Security MechanismWireless network name hidden
Transmitting Power30 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
Application FunctionTDMA,DFS,TPC,IFM,IPM
Receiving Sensitivity-86±2dBm@AC80-MCS0
Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz,(Note: Available channel may vary with local regulations.)
Package Dimensions (W × H × D)132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
Product Dimensions (W × H × D)90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
Max. Transmission Rate of Air Interface≤ 867 Mbps
