Products/Network Switches & Wi-Fi/Hikvision DS-3E1518P-SI-16P2F(O-STD) 16 Port Gigabit Smart POE Switch
Hikvision DS-3E1518P-SI-16P2F(O-STD) 16 Port Gigabit Smart POE Switch−19% OFF

Network Switches & Wi-Fi • SKU: DS-3E1518P-SI-16P2F(O-STD)

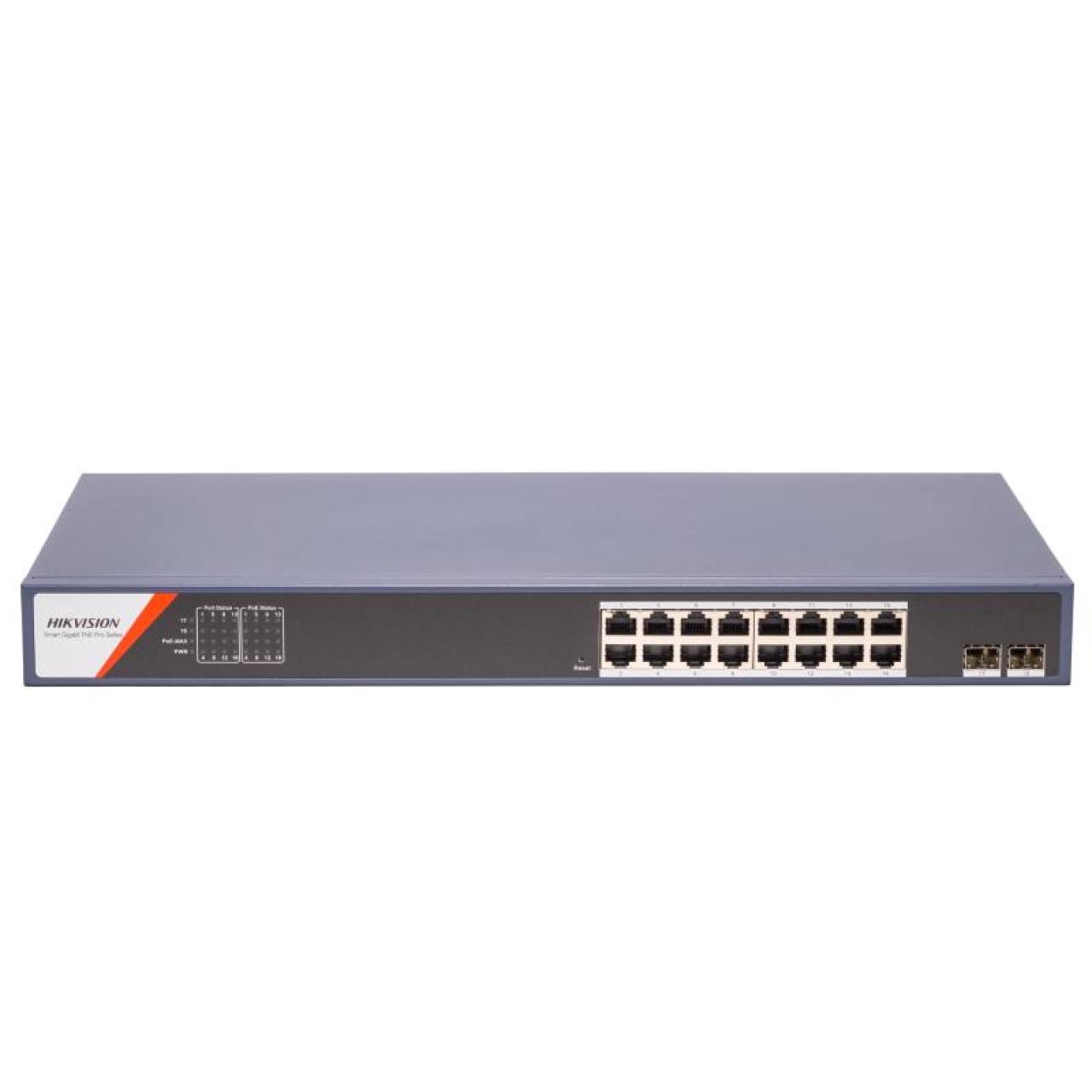

Hikvision DS-3E1518P-SI-16P2F(O-STD) 16 Port Gigabit Smart POE Switch

Rs. 95,690Rs. 117,721

The Hikvision DS-3E1518P-SI-16P2F(O-STD) is a 16-port PoE switch that powers IP cameras over the network cable, so each camera needs only one cable. It has a 230 W PoE power budget. It is web managed, so you can set VLANs and check port status from a browser. Enspire supplies it with warranty and can design and install the complete CCTV network anywhere in Sri Lanka.

1

2 Year Warranty

Island-wide Delivery

Key Features

  • 16 x 10/100/1000M PoE Ports, 2 x 100/1000M SFP
  • Total PoE Power Budget 230 W
  • Support energy saving mode with user-configurable plans
  • Support IEEE 802.1Q VLAN tagging
  • Support STP/RSTP/ERPS loop prevention with storm control
  • Support cable detection to locate failure
  • Support 6 kV surge protection

Technical Specifications

ACLSupport ACL definitions based on source/destination MAC address, source/destination IP address, IP protocol type. Support ACL application on ports. Support IPv4 ACL and MAC ACL configurations. Support inbound ACLs.
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display…
QoSQoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode.
IPSGIPSG can control the security of port access device. Support port, MAC, IP binding. Support 256 security entries.
VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
Ports16 × Gigabit PoE port,2 × Gigabit fiber optical port
ShellMetal material
SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
PoE PortPoE: Ports 1 to 16
ChemistryCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
Data SheetDownload PDF
Long RangePorts 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Net Weight2.56 kg (5.64 lb)
Gross Weight3.479 kg (7.67 lb)
ManufacturerHikvision
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
Power Supply100 to 240 V AC, 50/60 Hz, Max. 4 A
DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by…
PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Storm ControlStorm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and…
Internal Cache4.1 Mbits
Port IsolationPorts 1 to 18: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. Support G.8032 ERPS.
Max. Port Power30 W
Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups.
PoE Power Budget230 W
Surge Protection6 kV
Installation ModeRack (equipped with mounting ears)
MAC Address Table8 K
Relative Humidity5% to 95% (no condensation)
Operating Humidity5% to 95% (no condensation)
Port Rate-LimitingPort rate-limiting is used for port bandwidth adjustment to prevent network congestion.
Switching Capacity56 Gbps
System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support…
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
Max. Power Consumption250 W
Packet Forwarding Rate41.66 Mpps
Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
Power Consumption in Idle10 W
