Hikvision DS-3E1510P-EI/M-8P2F(O-STD) 8 Port Gigabit Smart POE Switch−19% OFF

Network Switches & Wi-Fi • SKU: DS-3E1510P-EI/M-8P2F(O-STD)

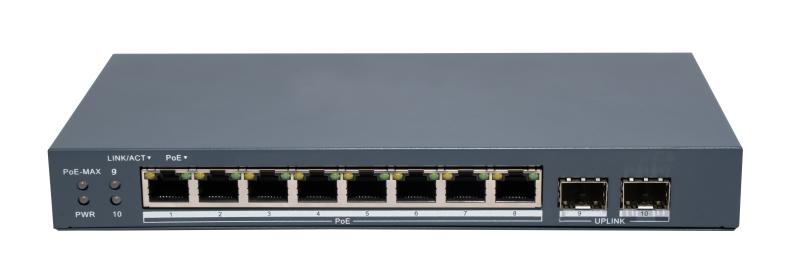

Hikvision DS-3E1510P-EI/M-8P2F(O-STD) 8 Port Gigabit Smart POE Switch

Rs. 24,557Rs. 30,211

The Hikvision DS-3E1510P-EI/M-8P2F(O-STD) is an 8-port PoE switch that powers IP cameras over the network cable, so each camera needs only one cable. It has a 80 W PoE power budget. It is a smart managed switch that you can monitor from Hik-Partner Pro and the Hikvision tools, with VLAN and loop protection. Enspire supplies it with warranty and can design and install the complete CCTV network anywhere in Sri Lanka.

1

2 Year Warranty

Island-wide Delivery

Key Features

  • 8 × Gigabit PoE port,2 × Gigabit Fiber Optical port
  • Total PoE Power Budget 80 W
  • Support 802.1Q VLAN
  • Support PoE watchdog to detect and restart the cameras that do not respond
  • Support STP/RSTP loop prevention
  • Support cable detection to locate failure
  • Up to 300 m Long Range PoE Transmission
  • 6 kV Surge Protection

Technical Specifications

EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display…
VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
ShellMetal material
SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
PoE PortPoE: Ports 1 to 8
ChemistryReach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU)
Data SheetDownload PDF
Long RangePorts 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Net Weight0.54 kg (1.19 lb)
Gross Weight1.08 kg (2.38 lb)
ManufacturerHikvision
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
Power Supply54VDC, 1.6A
PoE Power PinEnd-span: 1/2(-), 3/6(+)
Internal Cache1.5 Mbits
Port IsolationPorts 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
Max. Port Power30 W
Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 3 aggregation groups.
PoE Power Budget80 W
Surge Protection6 kV
Installation ModeDesk-Mounted,Wall-Mounted
MAC Address Table4 K
Relative Humidity5% to 95% (no condensation)
Operating Humidity5% to 95% (no condensation)
Switching Capacity20 Gbps
System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support…
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Max. Power Consumption86 W
Packet Forwarding Rate14.88 Mpps
Dimensions (W × H × D)217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
Power Consumption in Idle2.5 W
