Products/Network Switches & Wi-Fi/Hikvision DS-3E0510P-E/M 8 Port Gigabit Unmanaged POE Switch

−19% OFF

Network Switches & Wi-Fi • SKU: DS-3E0510P-E/M

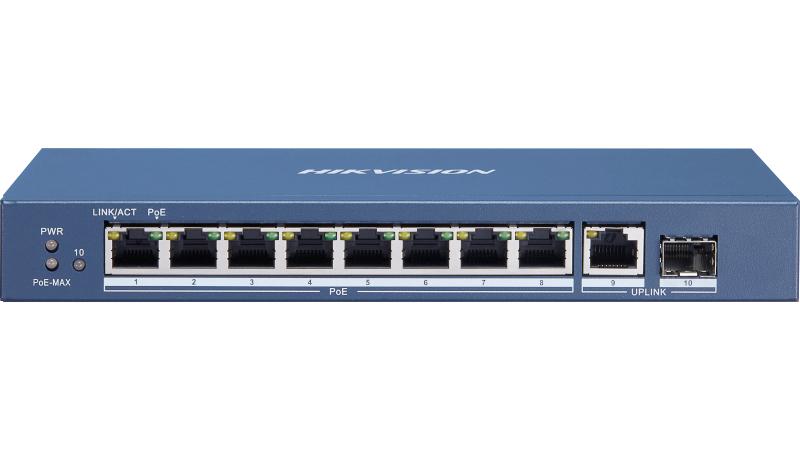

Hikvision DS-3E0510P-E/M 8 Port Gigabit Unmanaged POE Switch

Name: Hikvision DS-3E0510P-E/M 8 Port Gigabit Unmanaged POE Switch
Brand: Hikvision
SKU: DS-3E0510P-E/M
Price: 22140 LKR
Availability: InStock

Rs. 22,140Rs. 27,238

The Hikvision DS-3E0510P-E/M is an 8-port PoE switch that powers IP cameras over the network cable, so each camera needs only one cable. It is plug-and-play: no setup is needed. Enspire supplies it with warranty and can design and install the complete CCTV network anywhere in Sri Lanka.

2 Year Warranty

Island-wide Delivery

Key Features

8 × Gigabit PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optical port
IEEE 802.3at/af standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
6 KV surge protection for PoE ports
PoE power management
Gigabit network access
Wire-speed forwarding and non-blocking design
Store-and-forward switching

Technical Specifications

EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS…

Ports8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

ShellMetal material

SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

PoE PortPoE: Ports 1 to 8

ChemistryCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)

Data SheetDownload PDF

Net Weight0.635 kg (1.40 lb)

Gross Weight1.366 kg (3.01 lb)

ManufacturerHikvision

PoE StandardIEEE 802.3af;IEEE 802.3at

Power Supply48 VDC, 1.35 A

PoE Power PinEnd-span: 1/2(+), 3/6(-)

Internal Cache1.5 Mbits

Max. Port Power30 W

PoE Power Budget58 W

Surge Protection6 KV

Installation ModeDesk-Mounted,Wall-Mounted

MAC Address Table4 K

Relative Humidity5% to 95% (no condensation)

Operating Humidity5% to 95% (no condensation)

Switching Capacity20 Gbps

Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)

Operating Temperature0 °C to 40 °C (32 °F to 104 °F)

Max. Power Consumption65 W

Packet Forwarding Rate14.88 Mpps

Dimensions (W × H × D)217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')

Power Consumption in Idle7 W
