Hikvision DS-3E0109P-E/M(C)(O-STD) 8 Port Fast Ethernet Unmanaged POE Switch−19% OFF

Network Switches & Wi-Fi • SKU: DS-3E0109P-E/M(C)(O-STD)

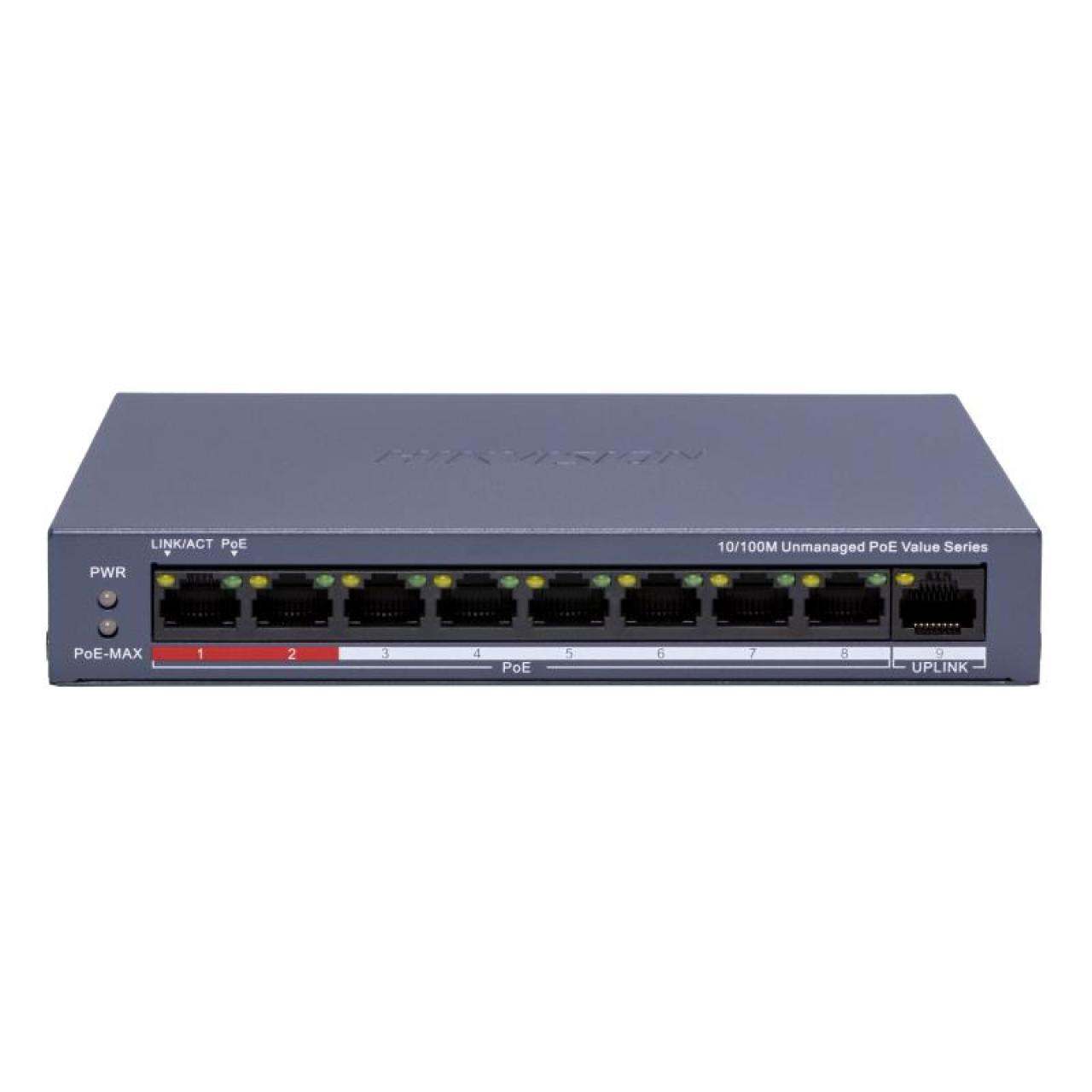

Hikvision DS-3E0109P-E/M(C)(O-STD) 8 Port Fast Ethernet Unmanaged POE Switch

Rs. 16,371Rs. 20,140

The Hikvision DS-3E0109P-E/M(C)(O-STD) is an 8-port PoE switch that powers IP cameras over the network cable, so each camera needs only one cable. It is plug-and-play: no setup is needed. Enspire supplies it with warranty and can design and install the complete CCTV network anywhere in Sri Lanka.

1

2 Year Warranty

Island-wide Delivery

Key Features

  • Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
  • Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
  • 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
  • 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
  • Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

Technical Specifications

EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Ports8 x 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
ShellMetal material
SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
PoE PortPoE: Ports 1 to 8
ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Data SheetDownload PDF
Long RangePorts 1 to 8 : up to 300 m. Long range performance may vary depend on camera model or cable condition.
Net Weight0.35 kg (0.77 lb)
Gross Weight0.89 kg (1.96 lb)
ManufacturerHikvision
PoE StandardIEEE 802.3af;IEEE 802.3at
Power Supply54VDC, 1.6A
PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Internal Cache1 Mbits
Max. Port Power30 W
PoE Power Budget80 W
Surge Protection6 kV
Installation ModeDesk-Mounted,Wall-Mounted
MAC Address Table2 K
Relative Humidity5% to 95% (no condensation)
Operating Humidity5% to 95% (no condensation)
Switching Capacity1.8 Gbps
Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Max. Power Consumption86 W
Packet Forwarding Rate1.34 Mpps
Dimensions (W × H × D)170 mm × 27.6 mm × 93.1 mm (6.7'' × 1.1'' × 3.7'')
Power Consumption in Idle6 W
