−22% OFFIP Cameras • SKU: DS-2CD2543G2-IWS

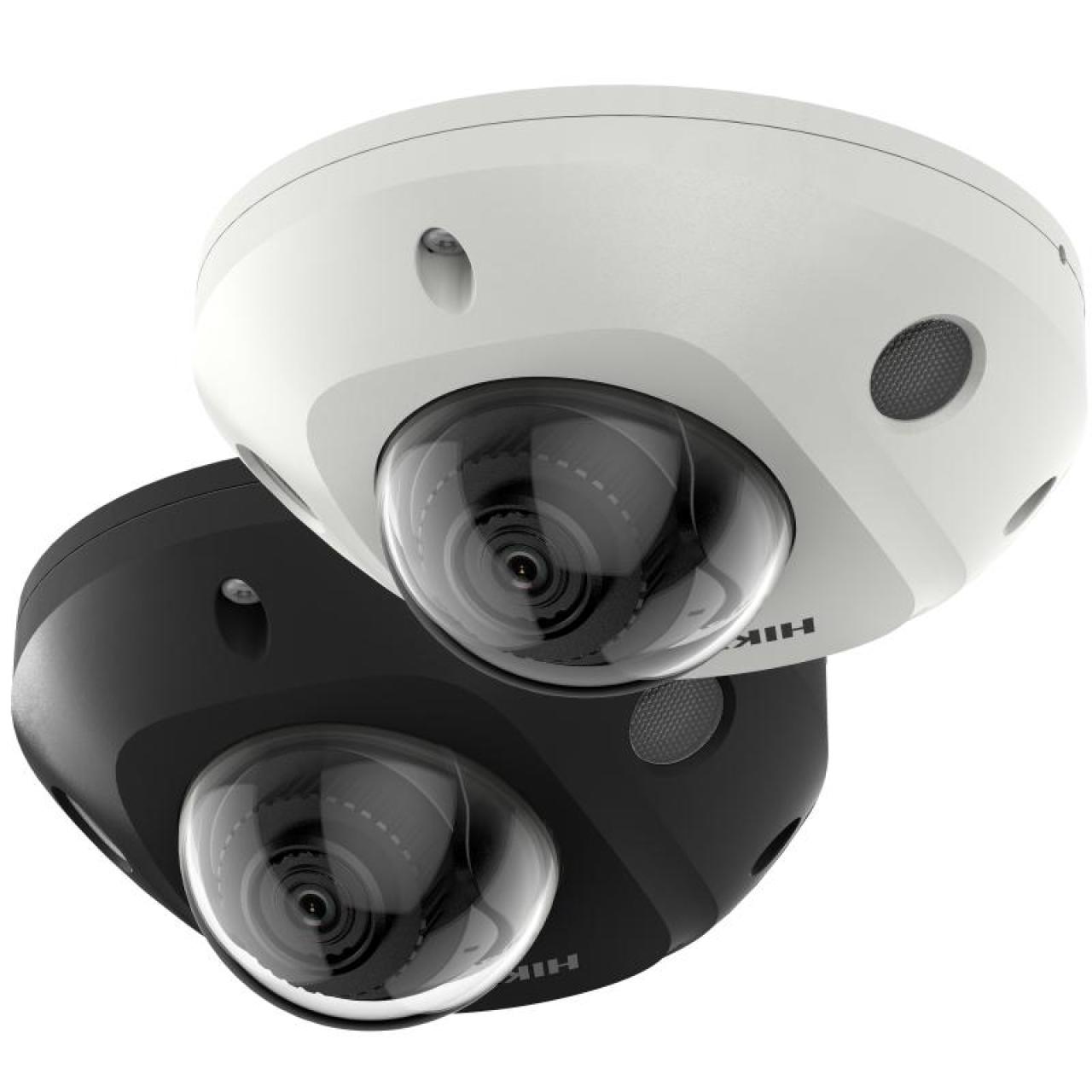

Hikvision DS-2CD2543G2-IWS 4MP AcuSense Built-in Mic Mini Dome IP Camera
Rs. 49,546Rs. 63,603
The Hikvision DS-2CD2543G2-IWS is a 4MP dome IP camera, suited to entrances, verandas, shop floors and corridors. AcuSense tells people and vehicles apart from other movement, so you get fewer false alerts. A built-in microphone records sound with the video. Lens: 2.8 mm. It is powered over the network cable (PoE), so one cable carries power and video. It is rated IP67 against rain and dust. It records to a Hikvision NVR and can be viewed on your phone with the Hik-Connect app. Enspire supplies it with warranty and can install it anywhere in Sri Lanka.
1
2 Year Warranty
Island-wide Delivery
Key Features
- High quality imaging with 4 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- -S: audio and alarm interface available
- -W: Realizing Wi-Fi connection and easy installation
- Water and dust resistant (IP67) and vandal resistant (IK08)
Technical Specifications
RF-W: FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
EMCFCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
SNR≥ 52 dB
DORI2 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 2.8 mm: D: 64 m, O: 25 m, R: 13 m, I: 6 m 4 mm: D: 85 m, O: 34 m, R: 17 m, I: 9 m
Alarm-IS/IWS: 1 input, 1 output (max. 12 VDC, 20 mA)
Audio-IS/IWS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3…
Power-IS: 12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W -IWS: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial…
ClientiVMS-4200, Hik-Connect, Hik-Central
SafetyUL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017)
WeightApprox. 380 g (0.8 lb.)
LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
ApertureF1.6
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian…
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video…
DimensionØ110 mm × 57.4 mm (Ø 4.3" × 2.3")
Iris TypeFixed
Lens TypeFixed focal lens, 2.8 and 4 mm optional
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Reset KeyYes
User/HostUp to 32 users. 3 user levels: administrator, operator and user
Data SheetDownload PDF
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Lens MountM12
Modulation-W: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
ProtectionIP67 (IEC 60529-2013) IK8 (IEC 62262:2002)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Day & NightIR cut filter
EnvironmentCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)) Face detection
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Sensor1/3" Progressive Scan CMOS
ManufacturerHikvision
Shutter Time1/3 s to 1/100,000 s
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
IR Wavelength850 nm
Transfer Rate-W: 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: up to 300 Mbps
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
Depth of Field2 mm: 0.6 m to ∞ 2.8 mm: 1.4 m to ∞ 4 mm: 1.6 m to ∞
Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Video Bit Rate32 Kbps to 8 Mbps
Wi-Fi Protocol-W: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Wireless Range-W: Up to 80 m (The performance varies based on actual environment)
Encryption Mode-W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Frequency Range-W: 2.4 GHz to 2.4835 GHz
Max. Resolution2688 × 1520
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Bit Rate ControlCBR/VBR
Day/Night SwitchDay, Night, Auto, Schedule
General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter
On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Channel Bandwidth-W: 20/40 MHz
Image EnhancementBLC, HLC, 3D DNR
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Video CompressionMain stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Focal Length & FOV2 mm, horizontal FOV 128°, vertical FOV 75°, diagonal FOV 147° 2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8° 4 mm, horizontal FOV 83.7°, vertical FOV 43.0°, diagonal FOV 100.3°
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Built-in MicrophoneYes
With Package WeightApprox. 615 g (1.4 lb.)
Supplement Light TypeIR
Simultaneous Live ViewUp to 6 channels
Smart Supplement LightYes
Supplement Light RangeUp to 30 m
Image Parameters SwitchYes
Lens options at Enspire2.8 mm
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Wide Dynamic Range (WDR)120 dB
Environment Noise FilteringYes
Scalable Video Coding (SVC)H.264 and H.265 encoding
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
