APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SNR≥ 52 dB
DORI2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Audio-S: 1 input (line in), two-core terminal block , max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block , max.output amplitude: 3.3 vpp…
Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
ClientiVMS-4200, Hik-Connect, Hik-Central
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
WeightApprox. 530 g (1.2 lb.)
LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email, trigger alarm output (-S model supports)
ApertureF1.6
Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian…
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video…
DimensionØ110.8 × 84.7 mm (Ø4.4″ × 3.3″)
Iris TypeFixed
Lens TypeFixed focal length, 2.8 and 4 mm optional
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Reset KeyYes
User/HostUp to 32 users. 3 user levels: administrator, operator and user
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Lens MountM12
ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Day & NightIR cut filter
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)) Face detection
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Sensor1/3" Progressive Scan CMOS

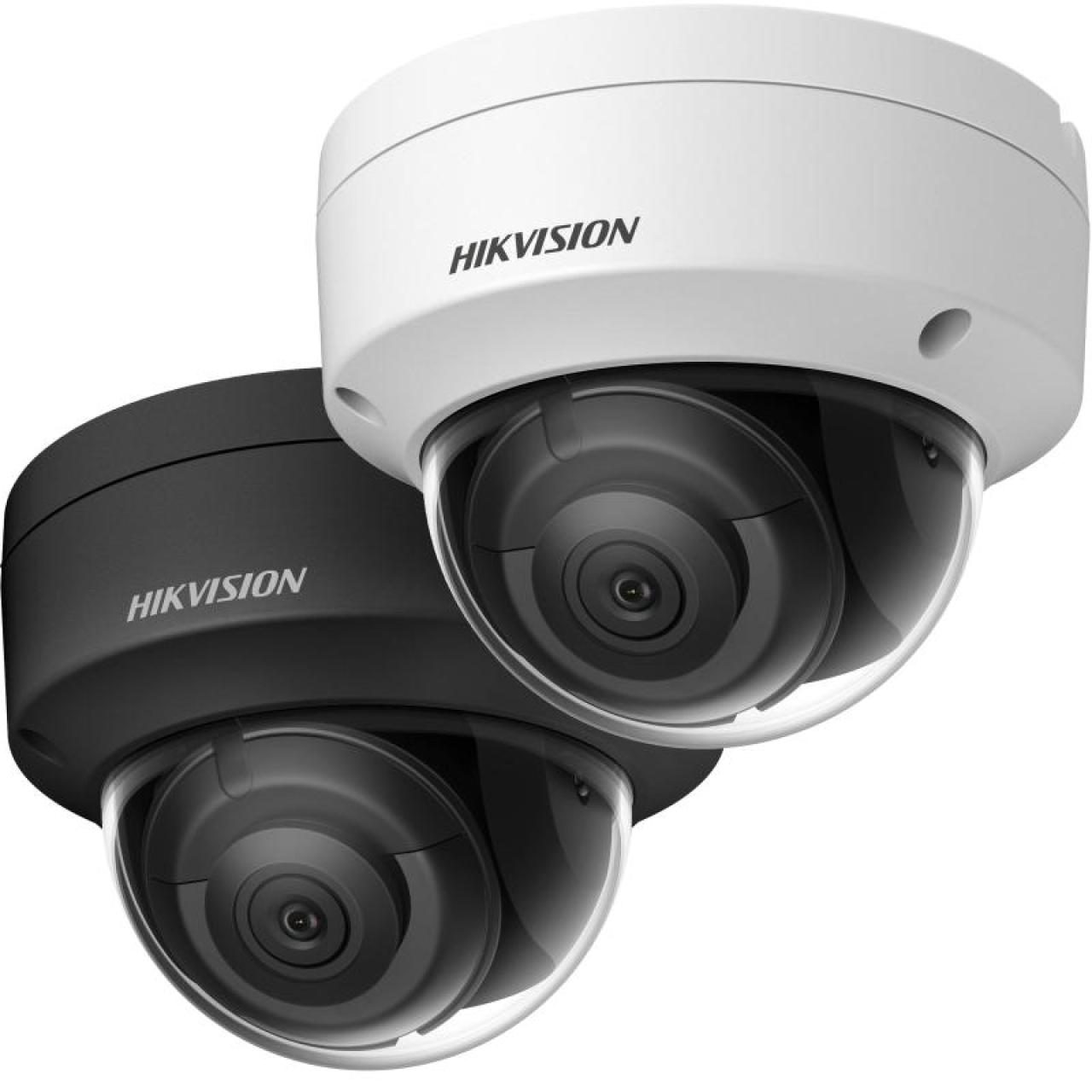

ManufacturerHikvision
Shutter Time1/3 s to 1/100,000 s
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
IR Wavelength850 nm
Audio Bit Rate-S: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Video Bit Rate32 Kbps to 8 Mbps
Max. Resolution2688 × 1520
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Bit Rate ControlCBR/VBR
Day/Night SwitchDay, Night, Auto, Schedule
General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
On-Board StorageBuilt-in microSD, up to 512 GB
Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Image EnhancementBLC, HLC, 3D DNR
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Package Dimension134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″)
Video CompressionMain stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
Focal Length & FOV2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
With Package WeightApprox. 720 g (1.6 lb.)
Supplement Light TypeIR
Simultaneous Live ViewUp to 6 channels
Smart Supplement LightYes
Supplement Light RangeUp to 30 m
Image Parameters SwitchYes
Lens options at Enspire2.8 mm or 4 mm (tell us which when ordering)
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Wide Dynamic Range (WDR)120 dB
Environment Noise Filtering-S: Yes
Scalable Video Coding (SVC)Yes
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
