← Products/IP Cameras/Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Dome IP Camera
Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Dome IP Camera−22% OFF

IP Cameras • SKU: DS-2CD1143G2-LIU

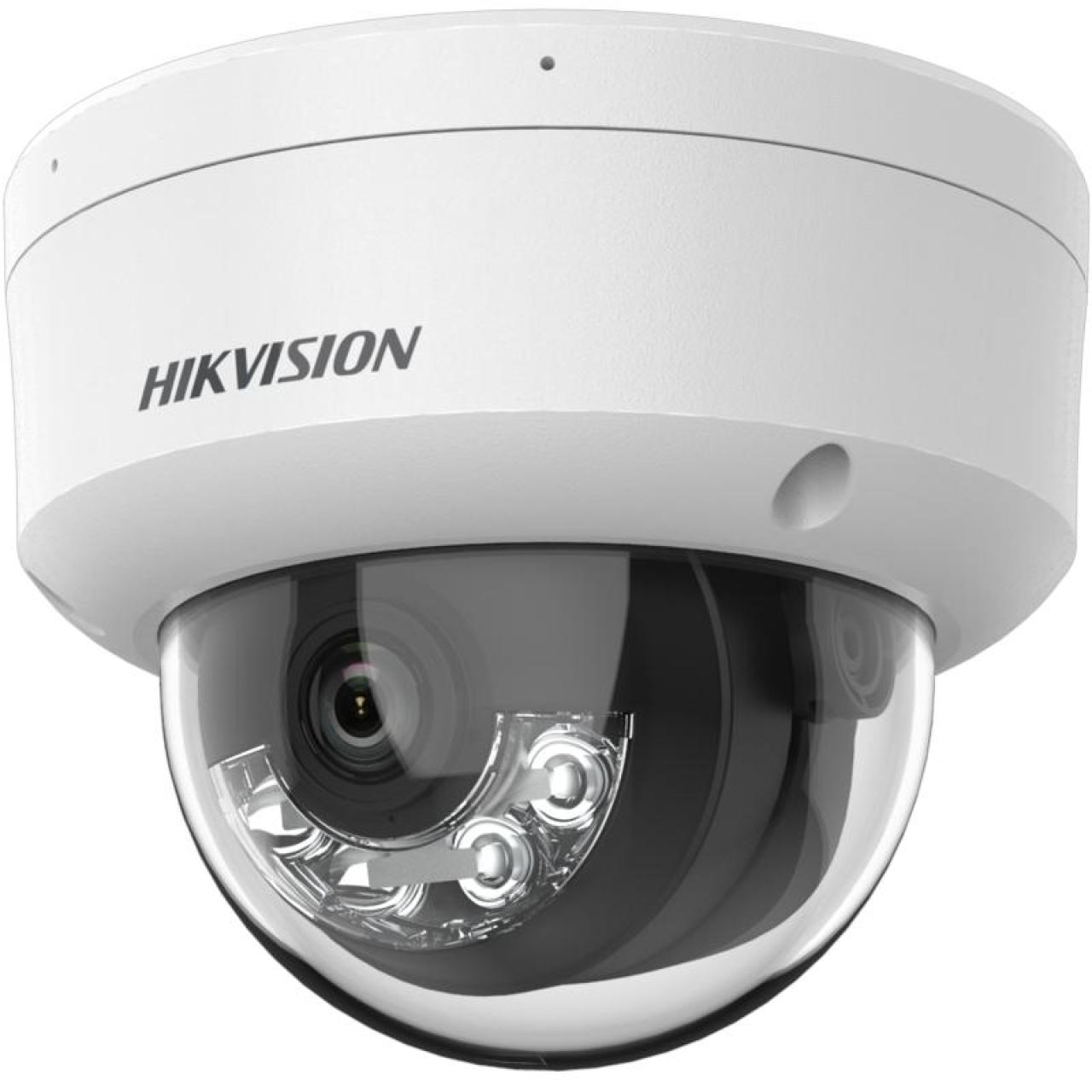

Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Dome IP Camera

Rs. 32,411Rs. 41,606

The Hikvision DS-2CD1143G2-LIU is a 4MP dome IP camera, suited to entrances, verandas, shop floors and corridors. Smart Hybrid Light uses infrared by default and white light when it detects movement. A built-in microphone records sound with the video. Choose a 2.8 mm or 4 mm lens: the shorter lens covers a wider area, the longer one shows more detail further away. It is powered over the network cable (PoE), so one cable carries power and video. It is rated IP67 against rain and dust. It records to a Hikvision NVR and can be viewed on your phone with the Hik-Connect app. Enspire supplies it with warranty and can install it anywhere in Sri Lanka.

1
  • 2 Year Warranty
  • Island-wide Delivery

Key Features

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Built-in microphone for real-time audio security
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot) (Optional)
  • Water and dust resistant (IP67) and vandal resistant (IK08)

Technical Specifications

API
Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
EMC
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
SNR
≥ 52 dB
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Client
iVMS-4200,Hik-Connect
Safety
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Weight
Approx. 550 g (1.2 lb.)
Linkage
Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
Aperture
F1.6
Language
English, Ukrainian
Material
Metal & Plastic
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Dimension
Ø121.4 mm × 97.7 mm (Ø4.8" × 3.8")
Iris Type
Fixed
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Reset Key
-F: Yes
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Audio Type
Mono sound
Data Sheet
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Lens Mount
M12
Protection
IP67: IEC 60529-2013,IK08: IEC 62262:2002
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Day & Night
IR cut filter
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Main Stream
50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Web Browser
Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Image Sensor
1/3" Progressive Scan CMOS
Manufacturer
Hikvision
Privacy Mask
4 programmable polygon privacy masks
Shutter Time
1/3 s to 1/100,000 s
IR Wavelength
850 nm
Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Video Bit Rate
32 Kbps to 8 Mbps
Max. Resolution
2560 × 1440
Angle Adjustment
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Bit Rate Control
CBR,VBR
Day/Night Switch
Day,Night,Auto,Schedule
General Function
Heartbeat,anti-banding,mirror,password protection,password reset via email
On-Board Storage
-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Image Enhancement
BLC,HLC,3D DNR
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Package Dimension
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Audio Sampling Rate
8 kHz/16 kHz
Built-in Microphone
Yes
With Package Weight
Approx. 800 g (1.8 lb.)
Supplement Light Type
IR,White Light
Simultaneous Live View
Up to 6 channels
Smart Supplement Light
Yes
Supplement Light Range
Up to 30 m
Lens options at Enspire
2.8 mm or 4 mm (tell us which when ordering)
Region of Interest (ROI)
1 fixed region for main stream
Wide Dynamic Range (WDR)
120 dB
Environment Noise Filtering
Yes
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
